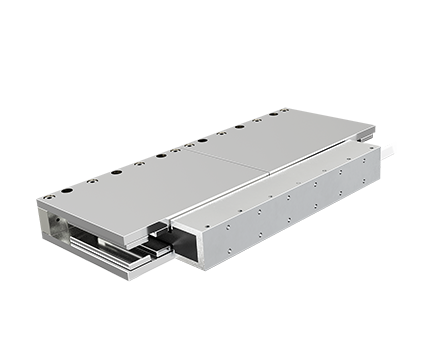

Vacuum Linear Motors

真空線性馬達

大銀真空線性馬達提供多種型號，考慮真空應用的低釋氣率需求，適用於10-8mbar高真空度環境，依需求訂製獨家的磁屏蔽設計可有效避免了磁場干擾，穩定半導體的電子束應用。 大銀可依客戶需求進行客製化設計，實現更高推力密度的性能表現。
  •  應用於高真空度達10-8mbar
  •  客製化磁屏蔽功能
  •  客製化清潔與釋氣率檢測服務

10-8 mbar

高真空

真空線性馬達

LMCA-V

LMCB-V

LMCC-V

LMCD-V

LMCE-V

LMCF-V

LMC-EFC-V

LMC-EFE-V

LMC-EFF-V

LMCA-V

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Length of Forcer [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMCA1-V 6 1.1 48 8.8 34 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCA2-V 12 1.2 96 9.2 66 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCA3-V 17 1.1 136 8.4 98 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCA4-V 22 1.1 180 8.4 130 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCA5-V 25 0.9 208 7.2 162 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCA6-V 30 0.9 248 7.2 194 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCA7-V 35 0.9 288 7.2 226 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCA8-V 41 0.9 331 7.2 258 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCAA-V 48 0.9 386 7.2 322 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCAC-V 61 0.9 496 7.2 386 128mm/N=2, 192mm/N=3, 320mm/N=5

LMCB-V

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Length of Forcer [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMCB1-V 9 1.0 72 8.0 34 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCB2-V 18 1.0 144 8.0 66 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCB3-V 27 1.0 216 8.0 98 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCB4-V 36 1.0 292 8.0 130 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCB5-V 45 1.0 364 8.0 162 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCB6-V 55 1.0 436 8.0 194 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCB7-V 64 1.0 512 8.0 226 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCB8-V 73 1.0 580 8.0 258 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCBA-V 91 1.0 724 8.0 322 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCBC-V 98 0.9 864 7.2 386 128mm/N=2, 192mm/N=3, 320mm/N=5

LMCC-V

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Length of Forcer [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMCC1-V 12 1.0 98 8.0 34 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCC2-V 24 1.0 195 8.0 66 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCC3-V 37 1.0 293 8.0 98 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCC4-V 49 1.0 391 8.0 130 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCC5-V 61 1.0 488 8.0 162 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCC6-V 73 1.0 588 8.0 194 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCC7-V 85 1.0 684 8.0 226 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCC8-V 98 1.0 780 8.0 258 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCCA-V 122 1.0 977 8.0 322 128mm/N=2, 192mm/N=3, 320mm/N=5
LMCCC-V 146 1.0 1173 8.0 386 128mm/N=2, 192mm/N=3, 320mm/N=5

LMCD-V

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Length of Forcer [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMCD4-V 65 1.6 524 13.0 260 120mm/N=2, 180mm/N=3, 300mm/N=5
LMCD6-V 98 1.6 788 13.0 380 120mm/N=2, 180mm/N=3, 300mm/N=5
LMCD8-V 131 1.6 1048 13.0 500 120mm/N=2, 180mm/N=3, 300mm/N=5
LMCDA-V 164 1.6 1312 13.0 620 120mm/N=2, 180mm/N=3, 300mm/N=5

LMCE-V

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Length of Forcer [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMCE4-V 92 1.6 736 13.0 260 120mm/N=2, 180mm/N=3, 300mm/N=5
LMCE6-V 138 1.6 1104 13.0 380 120mm/N=2, 180mm/N=3, 300mm/N=5
LMCE8-V 184 1.6 1472 13.0 500 120mm/N=2, 180mm/N=3, 300mm/N=5
LMCEA-V 230 1.6 1840 13.0 620 120mm/N=2, 180mm/N=3, 300mm/N=5
LMCEC-V 276 1.6 2208 13.0 740 120mm/N=2, 180mm/N=3, 300mm/N=5

LMCF-V

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Length of Forcer [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMCF4-V 114 1.9 912 15.2 260 120mm/N=2, 180mm/N=3, 300mm/N=5
LMCF6-V 171 2.9 1368 22.8 380 120mm/N=2, 180mm/N=3, 300mm/N=5
LMCF8-V 228 3.8 1824 30.4 500 120mm/N=2, 180mm/N=3, 300mm/N=5
LMCFA-V 285 4.8 2280 38.0 620 120mm/N=2, 180mm/N=3, 300mm/N=5
LMCFC-V 342 5.7 2736 45.6 740 120mm/N=2, 180mm/N=3, 300mm/N=5

LMC-EFC-V

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Length of Forcer [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMC-EFC1-V 19 1.7 150 13.6 61 120mm/N=2, 180mm/N=3, 300mm/N=5
LMC-EFC2-V 38 1.7 300 13.6 121 120mm/N=2, 180mm/N=3, 300mm/N=5
LMC-EFC3-V 57 1.7 450 13.6 181 120mm/N=2, 180mm/N=3, 300mm/N=5
LMC-EFC4-V 76 1.7 600 13.6 241 120mm/N=2, 180mm/N=3, 300mm/N=5

LMC-EFE-V

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Length of Forcer [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMC-EFE1-V 25 1.4 200 10.8 61 120mm/N=2, 180mm/N=3, 300mm/N=5
LMC-EFE2-V 50 1.4 400 10.8 121 120mm/N=2, 180mm/N=3, 300mm/N=5
LMC-EFE3-V 75 1.4 600 10.8 181 120mm/N=2, 180mm/N=3, 300mm/N=5
LMC-EFE4-V 100 1.4 800 10.8 241 120mm/N=2, 180mm/N=3, 300mm/N=5
LMC-EFE5-V 125 1.4 1000 10.8 301 120mm/N=2, 180mm/N=3, 300mm/N=5
LMC-EFE6-V 150 2.7 1200 21.7 361 120mm/N=2, 180mm/N=3, 300mm/N=5

LMC-EFF-V

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Length of Forcer [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMC-EFF1-V 39 2.9 309 22.6 61 120mm/N=2, 180mm/N=3, 300mm/N=5
LMC-EFF2-V 78 2.9 617 22.6 121 120mm/N=2, 180mm/N=3, 300mm/N=5
LMC-EFF3-V 117 2.9 926 22.6 181 120mm/N=2, 180mm/N=3, 300mm/N=5
LMC-EFF4-V 156 2.9 1234 22.6 241 120mm/N=2, 180mm/N=3, 300mm/N=5
LMC-EFF5-V 195 2.9 1543 22.6 301 120mm/N=2, 180mm/N=3, 300mm/N=5
LMC-EFF6-V 233 2.9 1852 22.6 361 120mm/N=2, 180mm/N=3, 300mm/N=5
LMC-EFF7-V 272 2.9 2160 22.6 421 120mm/N=2, 180mm/N=3, 300mm/N=5
LMC-EFF8-V 311 2.9 2469 22.6 481 120mm/N=2, 180mm/N=3, 300mm/N=5
LMC-EFF9-V 350 2.9 2777 22.6 541 120mm/N=2, 180mm/N=3, 300mm/N=5
LMC-EFFA-V 389 2.9 3086 22.6 601 120mm/N=2, 180mm/N=3, 300mm/N=5
LMC-EFFB-V 428 2.9 3394 22.6 661 120mm/N=2, 180mm/N=3, 300mm/N=5
LMC-EFFC-V 467 2.9 3703 22.6 721 120mm/N=2, 180mm/N=3, 300mm/N=5
LMC-EFFD-V 506 2.9 4012 22.6 781 120mm/N=2, 180mm/N=3, 300mm/N=5
