鐵心式線性馬達

選型程式
HIWIN 鐵心式線性馬達，具無磨耗、零背隙、低頓力與低速度鏈波等特性，加上動子推力密度大。可應用於高加減速之點對點需求運動，例如：自動化設備、工具機、半導體設備、玻璃切割機、雷射加工機、PCB加工、SMT機台、AOI光學檢測設備、主動式抑振平台等。

最大速度 30 m/s
最大加速度 10G
0.1 m/s補償前的速度漣波2~3 ％
直驅(無旋轉運動的元件轉換直線運動)

與單軸工業機器人相比

15 倍

最高速度提升
15倍

50 %

搭配複數動子
加工時間減少50%以上

∞ UNLIMIT

定子延伸銜接
有效行程無限制

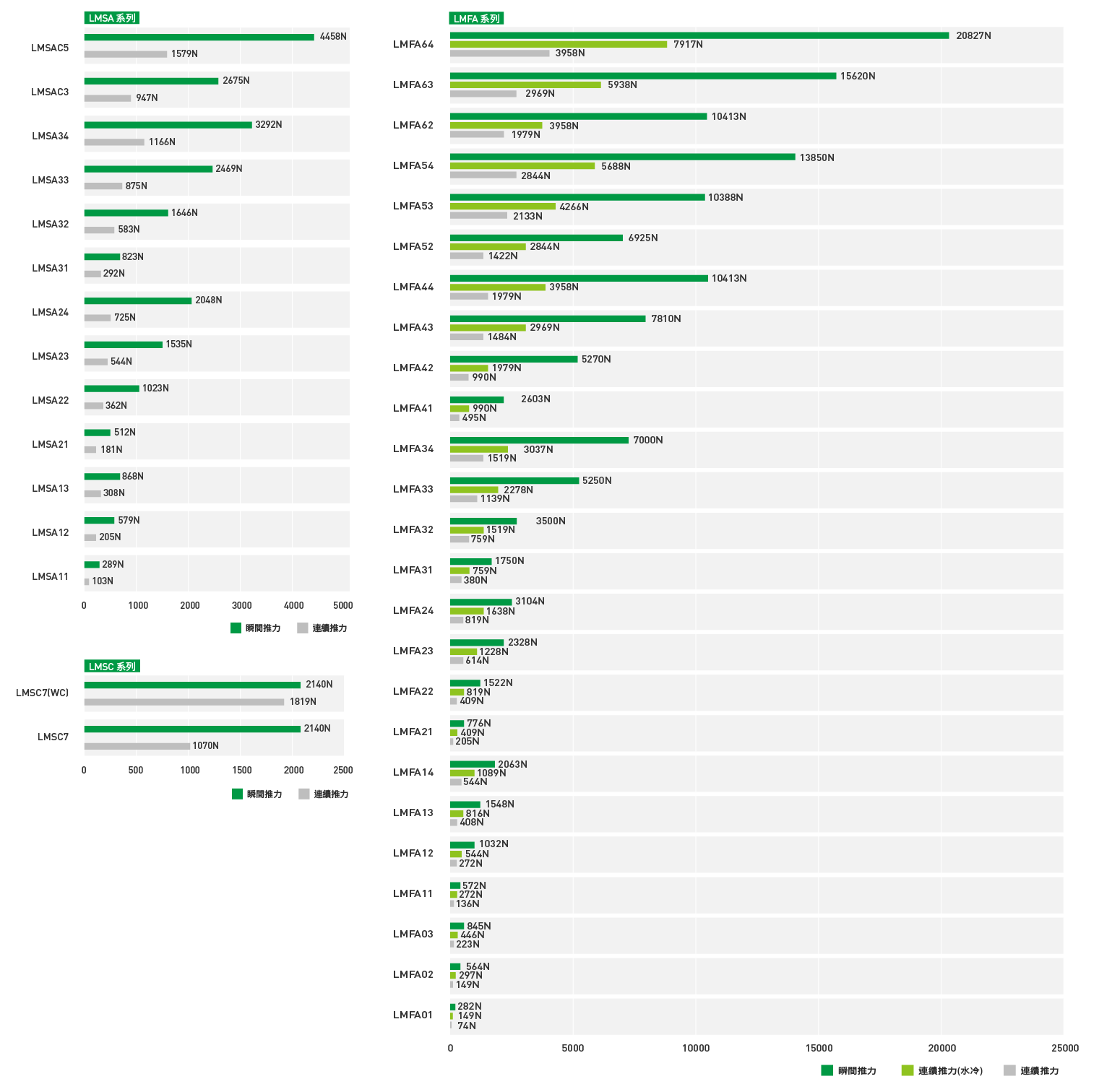

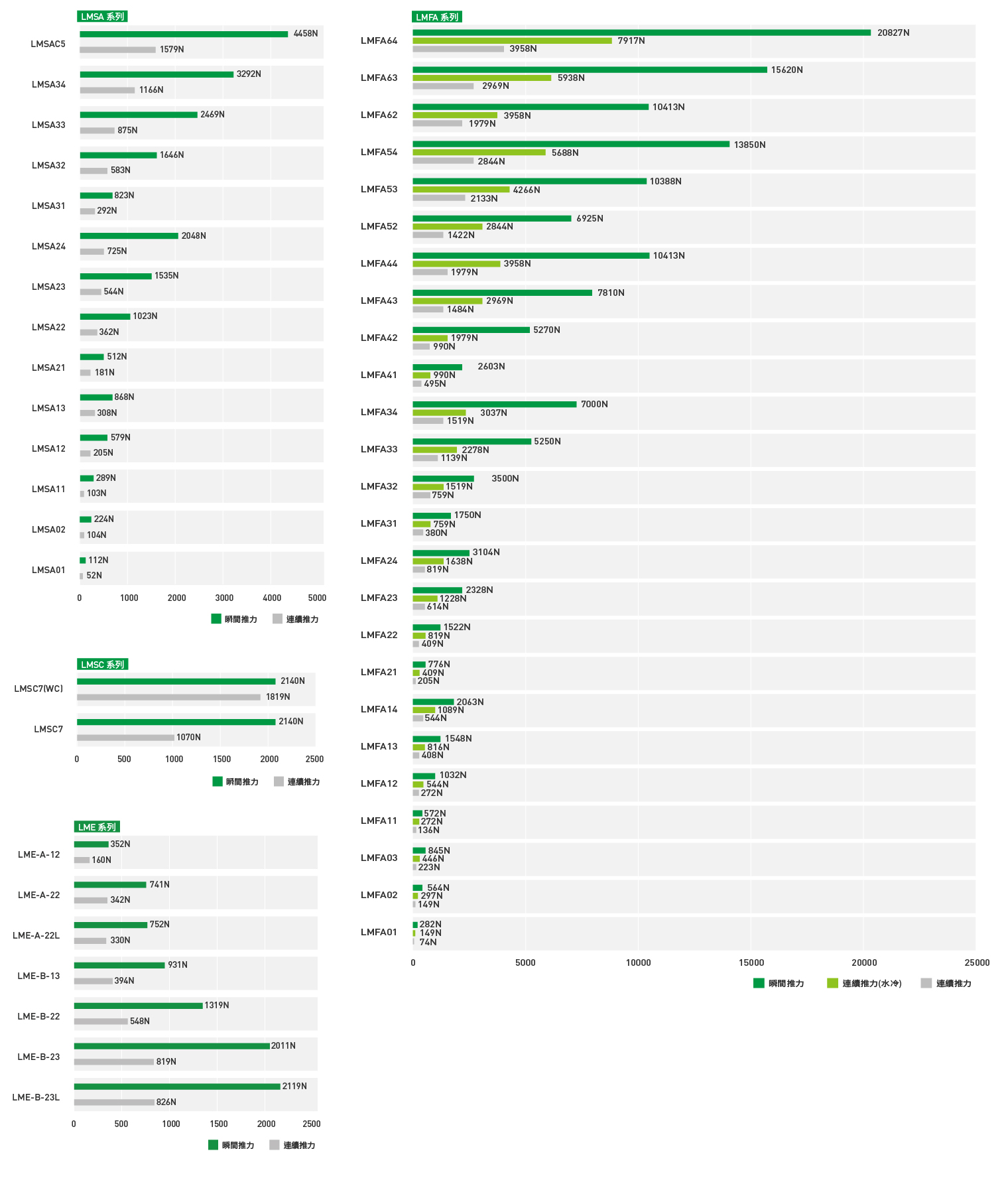

鐵心式線性馬達推力總覽

鐵心式線性馬達

LMSA

LMSA-Z

LMSC

LMFA

LMFP

LMFC

LMSS

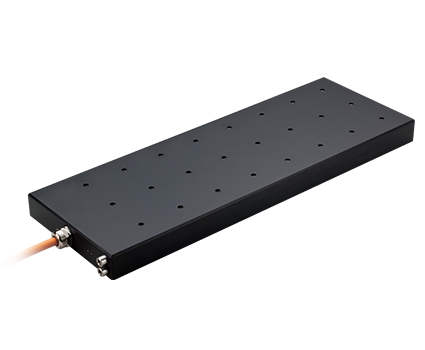

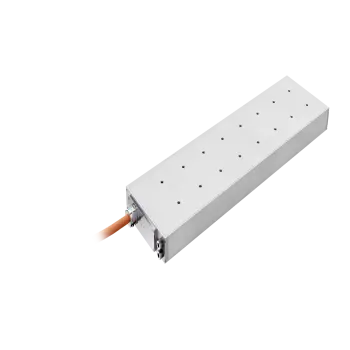

LMSA

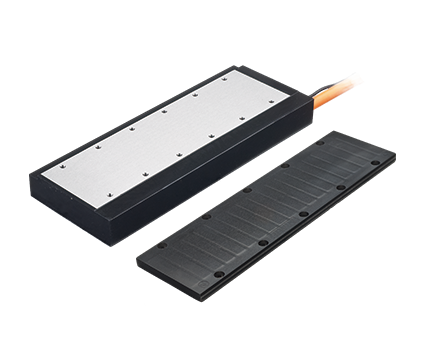

省空間-LMSA系列

連續推力範圍52N~1579N
瞬間推力範圍112N~4458N
安裝高度34mm、36mm

Type	Continuous force [N]	Continuous current [Arms]	Peak force (1s) [N]	Peak current (1s) [Arms]	Width of stator [mm]	Length of stator/Dimension N [mm]
LMSA01	52	2.1	112	6.3	37	120mm/N=2 180mm/N=3 300mm/N=5
LMSA02	104	4.2	224	12.6	37	120mm/N=2 180mm/N=3 300mm/N=5
LMSA11	103	2.1	289	6.3	52	120mm/N=2 180mm/N=3 300mm/N=5
LMSA11L	103	4.7	289	14.1	52	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA12	205	4.2	579	12.7	52	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA12L	205	9.4	579	28.3	52	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA13	308	6.3	868	19	52	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA13L	308	14.1	868	42.4	52	120mm/N=2 180mm/N=3 300mm/N=5
LMSA21	181	2.0	512	5.9	86	120mm/N=2 180mm/N=3 300mm/N=5
LMSA21(L)	181	4.4	512	13.1	86	120mm/N=2 180mm/N=3 300mm/N=5
LMSA22	362	3.9	1023	11.8	86	120mm/N=2 180mm/N=3 300mm/N=5
LMSA22(L)	362	8.8	1023	26.3	86	120mm/N=2 180mm/N=3 300mm/N=5
LMSA23	544	5.9	1535	17.6	86	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA23L	544	13.1	1535	39.4	86	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA24	725	7.8	2048	23.5	86	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA24L	725	17.5	2048	52.5	86	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA31	292	2	823	6	116	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA31L	292	4.5	823	13.4	116	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA32	583	4	1646	12	116	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA32L	583	8.9	1646	26.8	116	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA33	875	6	2469	18	116	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA33L	875	13.4	2469	40.2	116	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA34	1166	8	3292	24	116	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA34L	1166	17.9	3292	53.6	116	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSAC3	947	6	2675	18	126	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSAC3L	947	13.4	2675	40.2	126	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSAC5	1579	10	4458	30	126	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSAC5L	1579	22.3	4458	67	126	120mm/N=2, 180mm/N=3, 300mm/N=5

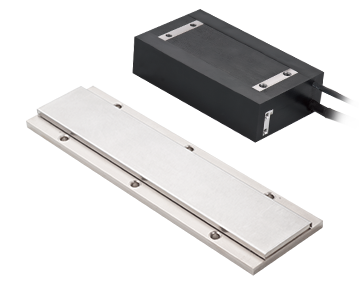

LMSA-Z

接頭設計-LMSA-Z系列

高動態響應
低安裝高度
連續推力範圍52N至1166N
瞬間推力範圍112N至3292N
安裝高度34mm,36mm

Type	Continuous force [N]	Continuous current [Arms]	Peak force (1s) [N]	Peak current (1s) [Arms]	Width of stator [mm]	Length of stator/Dimension N [mm]
LMSA01-Z	52	2.1	112	6.3	37	120mm/N=2 180mm/N=3 300mm/N=5
LMSA02-Z	104	4.2	224	12.6	37	120mm/N=2 180mm/N=3 300mm/N=5
LMSA11-Z	103	2.1	289	6.3	52	120mm/N=2 180mm/N=3 300mm/N=5
LMSA12-Z	205	4.2	579	12.7	52	120mm/N=2 180mm/N=3 300mm/N=5
LMSA13-Z	308	6.3	868	19	52	120mm/N=2 180mm/N=3 300mm/N=5
LMSA21-Z	181	2	512	5.9	86	120mm/N=2 180mm/N=3 300mm/N=5
LMSA22-Z	362	3.9	1023	11.8	86	120mm/N=2 180mm/N=3 300mm/N=5
LMSA23-Z	544	5.9	1535	17.6	86	120mm/N=2 180mm/N=3 300mm/N=5
LMSA24-Z	725	7.8	2048	23.5	86	120mm/N=2 180mm/N=3 300mm/N=5
LMSA31-Z	292	2	823	6	116	120mm/N=2 180mm/N=3 300mm/N=5
LMSA32-Z	583	4	1646	12	116	120mm/N=2 180mm/N=3 300mm/N=5
LMSA33-Z	875	6	2469	18	116	120mm/N=2 180mm/N=3 300mm/N=5
LMSA34-Z	1166	8	3292	24	116	120mm/N=2 180mm/N=3 300mm/N=5

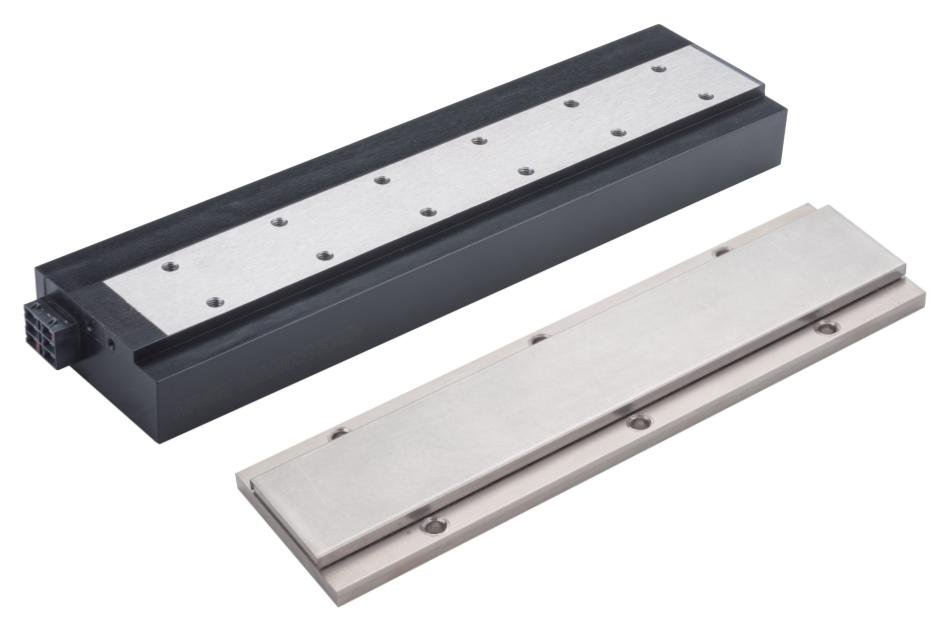

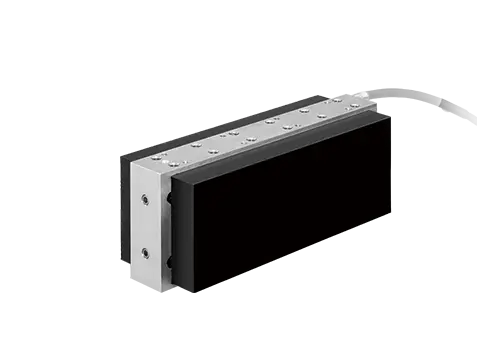

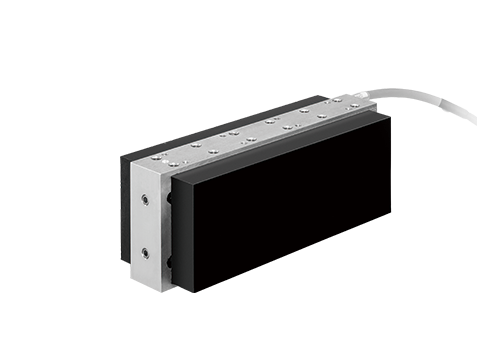

LMSC

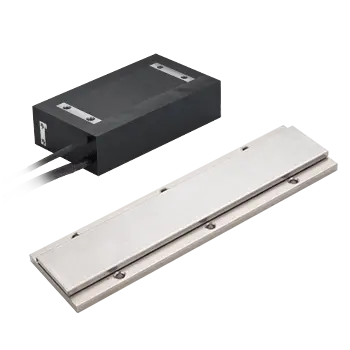

磁力相抵 -LMSC系列

連續推力範圍1070N~1819N
瞬間推力2140N
安裝高度131.5mm

Type	Continuous force [N]	Continuous current [Arms]	Peak force (1s) [N]	Peak current (1s) [Arms]	Width of stator [mm]	Length of stator/Dimension N [mm]
LMSC7	1070	3.9	2140	11.8	100	128mm/N=1, 192mm/N=2, 320mm/N=4
LMSC7(WC)	1819	6.7	2140	11.8	100	128mm/N=1, 192mm/N=2, 320mm/N=4
LMSC7L	1070	7.9	2140	23.7	100	128mm/N=1, 192mm/N=2, 320mm/N=4
LMSC7L(WC)	1819	13.4	2140	23.7	100	128mm/N=1, 192mm/N=2, 320mm/N=4

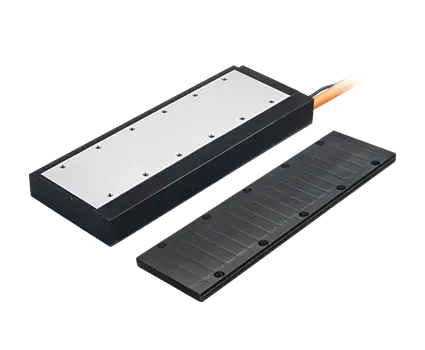

LMFA

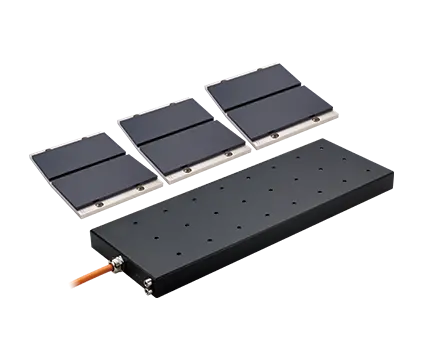

水冷設計-LMFA系列

水冷連續推力範圍149N~7917N
瞬間推力範圍282N~20827N
安裝高度48.5mm、50.5mm、64.1mm、66.1mm

Type	Continuous force [N]	Continuous current [Arms]	Peak force (1s) [N]	Peak current (1s) [Arms]	Width of stator [mm]	Length of stator/Dimension N [mm]
LMFA01	74	1.4	149	2.7	58	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA01L	74	1.8	149	3.6	58	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA02	149	2.7	297	5.4	58	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA02L	149	3.6	297	7.3	58	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA03	223	4.1	446	8.1	58	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA03L	223	5.5	446	10.9	58	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA11	136	1.4	272	2.7	88	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA11L	136	1.8	272	3.6	88	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA12	272	2.7	544	5.4	88	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA12L	272	3.6	544	7.3	88	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA13	408	4	816	8.1	88	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA13L	408	5.5	816	10.9	88	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA14	544	5.4	1089	10.8	88	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA14L	544	7.3	1089	14.6	88	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA21	205	1.4	409	2.7	118	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA21L	205	1.8	409	3.6	118	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA22	409	2.7	819	5.4	118	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA22L	409	3.6	819	7.3	118	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA23	614	4.1	1228	8.1	118	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA23L	614	5.5	1228	10.9	118	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA24	819	5.4	1638	10.8	118	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA24L	819	7.3	1638	14.6	118	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA31	380	3.1	759	6.2	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA31L	380	4.6	759	9.1	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA32	759	6.2	1519	12.4	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA32L	759	9.1	1519	18.3	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA33	1139	9.3	2278	18.6	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA33L	1139	13.7	2278	27.4	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA34	1519	12.4	3037	24.7	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA34L	1519	18.3	3037	36.5	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA41	495	2.9	990	5.8	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA41L	495	4.3	990	8.5	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA42	990	5.8	1979	11.5	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA42L	990	8.5	1979	17	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA43	1484	8.7	2969	17.3	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA43L	1484	12.8	2969	25.6	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA44	1979	11.5	3958	23.1	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA44L	1979	17	3958	34.1	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA52	1422	6.2	2844	12.4	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA52L	1422	9.1	2844	18.3	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA53	2133	9.3	4266	18.6	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA53L	2133	13.7	4266	27.4	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA54	2844	12.4	5688	24.7	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA54L	2844	18.3	5688	36.5	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA62	1979	5.8	3958	11.5	334	184mm/N=4
LMFA62L	1979	11.5	3958	23.1	334	184mm/N=4
LMFA63	2969	8.7	5938	17.3	334	184mm/N=4
LMFA63L	2969	17.3	5938	34.6	334	184mm/N=4
LMFA64	3958	11.5	7917	23.1	334	184mm/N=4
LMFA64L	3958	23.1	7917	46.2	334	184mm/N=4

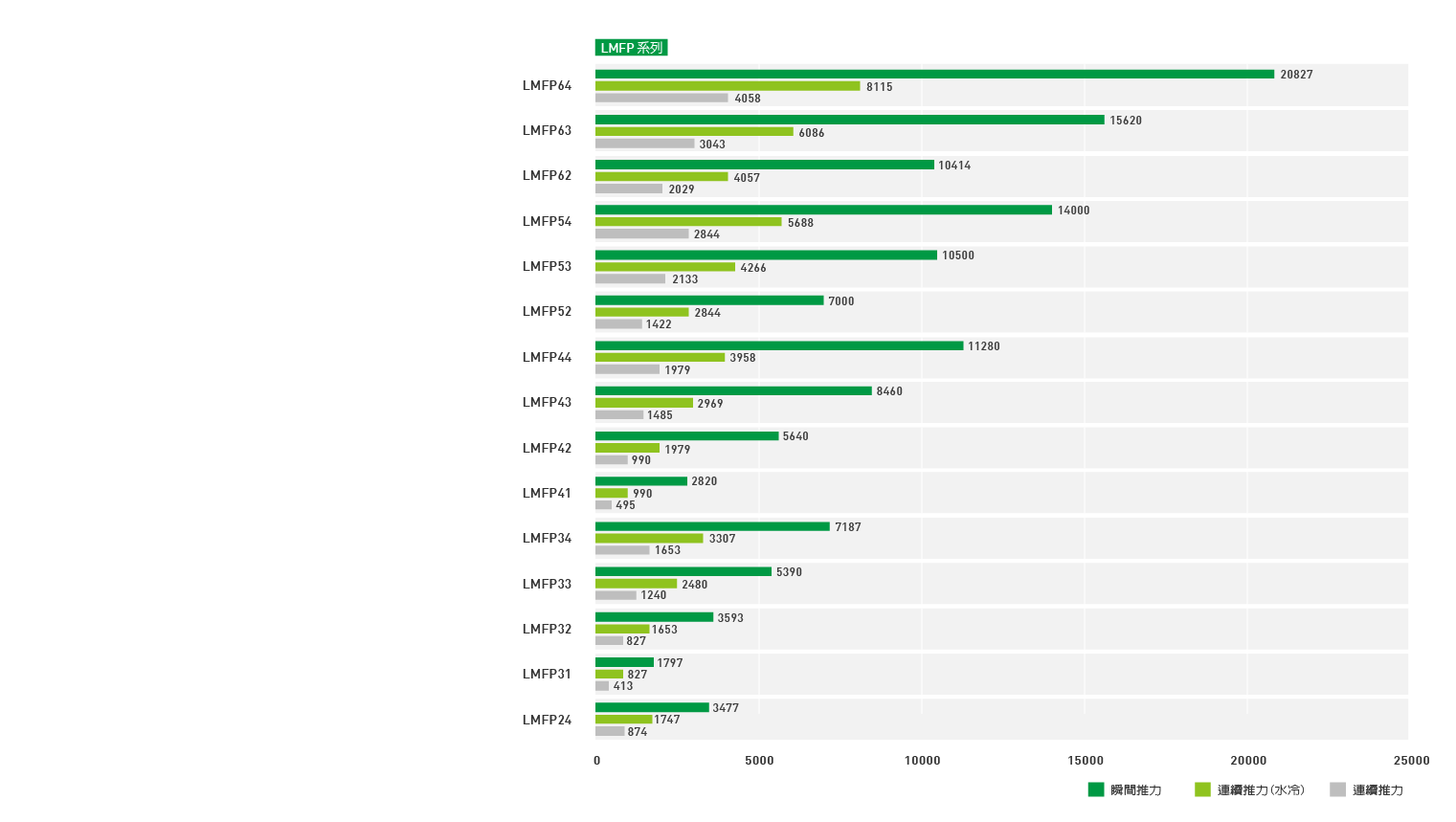

LMFP

水冷設計-LMFP系列

IP 65防護
水冷連續推力範圍827N~8115N
瞬間推力範圍1797N~20827N
安裝高度50.5mm、64.1mm、66.1mm

Type	Continuous force [N]	Continuous current [Arms]	Peak force (1s) [N]	Peak current (1s) [Arms]	Width of stator [mm]	Length of stator/Dimension N [mm]
LMFP24-F40	874	5.7	3477	32.8	118	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFP24-H40	874	8.6	3477	49.5	118	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFP31-Q10	413	4.1	1797	25.6	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP31-Q20	413	8.2	1797	51.2	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP32-Q20	827	8.2	3593	51.2	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP32-Q40	827	16.5	3593	102.4	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP33-Q30	1240	12.4	5390	76.8	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP33-Q60	1240	24.7	5390	153.6	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP34-Q40	1653	16.5	7187	102.4	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP34-Q80	1653	32.9	7187	204.8	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP41-Q10	495	3.4	2820	22.7	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP41-Q20	495	6.8	2820	45.4	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP42-Q20	990	6.8	5640	45.5	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP42-Q40	990	13.6	5640	90.9	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP43-Q30	1485	10.2	8640	68.2	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP43-Q60	1485	20.4	8640	136.4	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP44-Q40	1979	13.6	11280	90.9	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP44-Q80	1979	27.1	11280	181.8	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP52-Q20	1422	7.4	7000	46.3	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP52-Q40	1422	14.8	7000	92.7	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP53-Q30	2133	11.1	10500	69.5	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP53-Q60	2133	22.2	10500	139	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP54-Q40	2844	14.8	14000	92.7	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP54-Q80	2844	29.6	14000	185.3	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP62-Q20	2029	7	10414	41.9	334	184mm/N=4
LMFP62-Q40	2029	13.9	10414	83.8	334	184mm/N=4
LMFP63-Q30	3043	10.4	15620	62.9	334	184mm/N=4
LMFP63-Q60	3043	20.9	15620	125.7	334	184mm/N=4
LMFP64-Q40	4058	13.9	20827	83.8	334	184mm/N=4
LMFP64-Q80	4058	27.8	20827	167.6	334	184mm/N=4

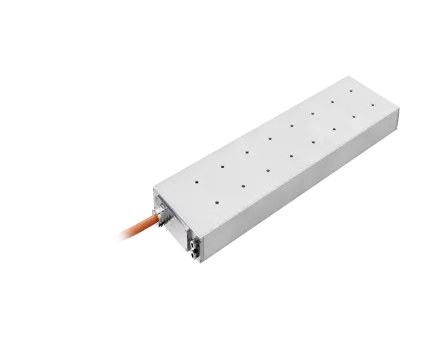

LMFC

精密水冷設計-LMFC系列

搭配LMFA&LMFP系列線性馬達一同使用
與水冷機水溫差異4℃以內
表面維持均溫
簡易安裝，定子精密水冷無限拼接

Type	Continuous force [N]	Continuous current [Arms]	Peak force (1s) [N]	Peak current (1s) [Arms]	Width of stator [mm]	Length of stator/Dimension N [mm]	Data Sheet	Interface Drawing	3D Model
LMFC	-	-	-	-	-	-

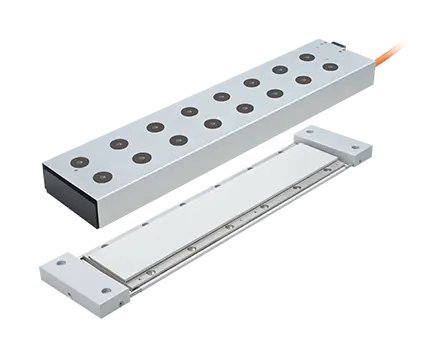

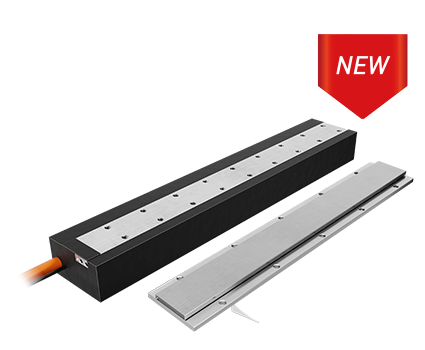

LMSS

短長度設計以減少行程
頓力優化
絕緣等級 F

Type	Continuous force [N]	Continuous current [Arms]	Peak force (1s) [N]	Peak current (1s) [Arms]	Width of stator [mm]	Length of stator/Dimension N [mm]	Data Sheet	Interface Drawing	3D Model
LMSS11	95	2.7	263	10.8	50	80mm/N=2, 200mm/N=5
