Gantry structure: Customization

龍門定位平台：客製化

藉由各種單軸定位平台的堆疊組合，可構成許多不同行程及功能的龍門架構定位定位平台，此類型定位平台常應用於光電元件、面板顯示、醫療器材產業等。

  • 依客戶需求提供客製化定位平台

龍門定位平台：客製化

ALＡ

ALB

ALC

GLA

GLB

GLD

GLE

GLF

GBC

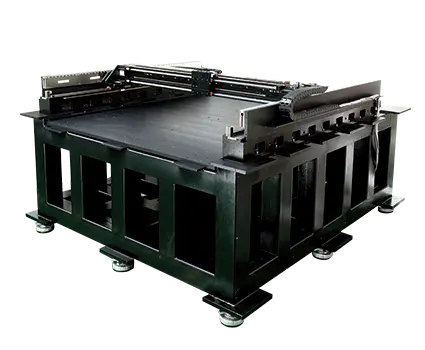

ALＡ

  • 採非接觸式空氣軸承，免保養，壽命極佳
  • 定位精度高，溫度影響低
  • 搭配無鐵心式馬達
  • 整合高精度大尺寸真空吸盤
  • 依客戶需求整合電控系統
  • 搭配被動式抑振系統
Type Stroke(mm)Max. force/Con. force(N)Repeatability (μm)Accuracy(μm)Max. Acceleration (m/s2) (With payload) Max. Velocity (m/s) (With payload) Data Sheet Interface Drawing 3D Model
ALA X：700；Y：800；Z：50 X：580/145；Y：780/195；Z：HIWIN 1KW(200V) X,Y：±0.5；Z：±2 X,Y：±1.5；Z：±6 X：2.5 ；Y：4；Z：2 X,Y：0.3；Z：0.05

ALB

  • 採非接觸式空氣軸承，免保養，壽命極佳
  • 定位精度高，溫度影響低
  • 搭配無鐵心式馬達
  • 整合高精度真空吸盤
  • Z方向Jitter 100nm內
  • 高行走平坦度，可達±1µm
Type Stroke(mm)Max. force/Con. force(N)Repeatability (μm)Accuracy(μm)Max. Acceleration (m/s2) (With payload) Max. Velocity (m/s) (With payload) Data Sheet Interface Drawing 3D Model
ALB 250 X:580/195, Y:580/145 ±0.75 ±1.5 2 0.25

ALC

  • 採非接觸式空氣軸承，免保養，壽命極佳
  • 定位精度高
  • 搭配無鐵心式馬達
  • 高負載能力，可達680Kg
  • 高行走平坦度，可達±3µm
Type Stroke(mm)Max. force/Con. force(N)Repeatability (μm)Accuracy(μm)Max. Acceleration (m/s2) (With payload) Max. Velocity (m/s) (With payload) Data Sheet Interface Drawing 3D Model
ALC 2320 2736/684 ±0.5 ±2 2 0.7

GLA

  • 微型龍門架構，可大幅節省空間
  • 輕量化橫樑設計
  • 高動態響應
Type Stroke(mm)Max. force/Con. force(N)Repeatability (μm)Accuracy(μm)Max. Acceleration (m/s2) (With payload) Max. Velocity (m/s) (With payload) Data Sheet Interface Drawing 3D Model
GLA X,Y:200; Z:50 X,Y:254/92; Z:HIWIN 50W(220V) X,Z:±2 ; Y:±3 X:±5 ;Y,Z:±10 5 X:1, Y:0.5 ,Z:0.04

GLB

  • 高剛性鋁製龍門架構
  • 搭配防塵護套
  • Z軸採模組化KK架構
  • 依精度需求可選用單邊或雙邊驅動架構
Type Stroke(mm)Max. force/Con. force(N)Repeatability (μm)Accuracy(μm)Max. Acceleration (m/s2) (With payload) Max. Velocity (m/s) (With payload) Data Sheet Interface Drawing 3D Model
GLB X:600, Y:900, Z:234 X:540/203, Y:639/240, Z:HIWIN 100W(200V) X,Y:±5 ; Z:±2 X,Y:±15 ; Z:±C 5 0.2

GLD

  • 高剛性鑄鐵底座，抑振效果佳
  • 適合高加減速定位應用
  • 高定位精度
  • 可依精度需求採單邊或雙邊驅動架構
Type Stroke(mm)Max. force/Con. force(N)Repeatability (μm)Accuracy(μm)Max. Acceleration (m/s2) (With payload) Max. Velocity (m/s) (With payload) Data Sheet Interface Drawing 3D Model
GLD X:515, Y:540 X:540/203, Y:1425/535 ±1 ±2 X:15, Y:10 1.5

GLE

  • 高剛性鋁製龍門結構、具極佳性價比
  • 適合高加減速定位應用
  • 馬達採外掛設計，工作區域極大化
  • 鏈條採立式設計，可大幅節省空間
Type Stroke(mm)Max. force/Con. force(N)Repeatability (μm)Accuracy(μm)Max. Acceleration (m/s2) (With payload) Max. Velocity (m/s) (With payload) Data Sheet Interface Drawing 3D Model
GLE X:580, Y:500 X:289/121, Y:1023/426 ±2.5 ±5 10 0.5

GLF

  • 搭配防塵護套
  • 花崗岩底座、鋼管橫樑結構
  • 模組化Z軸搭配高精度轉矩馬達
Type Stroke(mm)Max. force/Con. force(N)Repeatability (μm)Accuracy(μm)Max. Acceleration (m/s2) (With payload) Max. Velocity (m/s) (With payload) Data Sheet Interface Drawing 3D Model
GLF X:750, Y:550, Z:170 X:1953/733, Y:1425/535, Z:HIWIN 400W(200V) X,Y:±1 ; Z:±2 ±3 X:20, Y:4, Z:2.5 X,Y:1 ; Z:0.5

GBC

  • 螺桿架構、具極佳價格優勢
  • 高加減速
  • 可搭配線性尺提升重現性及定位精度
  • 架構簡單
Type Stroke(mm)Max. force/Con. force(N)Repeatability (μm)Accuracy(μm)Max. Acceleration (m/s2) (With payload) Max. Velocity (m/s) (With payload) Data Sheet Interface Drawing 3D Model
GBC X:515, Y:540 NA ±2.5 ±6 X:12, Y:17 1
