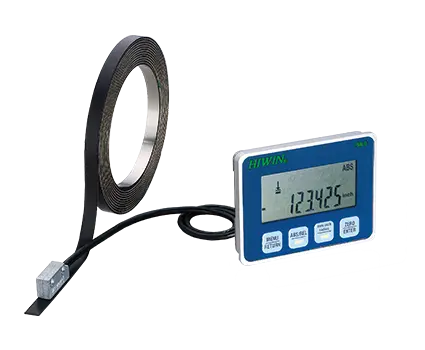

Positioning Measurement System


Compatible with various measurement instruments to achieve different accuracy requirements.Magnetic scale can maintain performance under severe ambient conditions caused by oil, water or dust to gain required accuracy and signal feedback.
  • Accuracy:±(80μm+15μm/m*L) L:Length
  • Resolution 5mm(Analog) 5μm(Digital)
  • Repeatability±15μm(Analog)  ±10μm(Digital)
  • Reference signal:1Pulse/1mm
