HIWIN coreless U shape motor is with no backlash, zero cogging force and low velocity ripple. Besides, there is no attraction force between forcer and stator because of coreless design. HIWIN LMC Series Linear motor was designed for low payload application and continues motion curve, including high speed and low payload of automatic machine, high clean environment of manufacturing equipment for semi-conductors and LCDs, automated optical inspection (AOI), EDM machine tool and CNC piston turner.
  • Vmax = 30m/s
  • Amax = 10 G
  • Velocity ripple = 0.80% at V =0.1 m/s (before compensating)
  • No noise 0 Db
  • Direct Drive

Compared with single-axis robot

2.5 x

Maximum Velocity Increase of
2.5x

50 %

With multiple forcers
Work Efficiency Increase of 50%

∞ UNLIMIT

Assembly multiple stators
Flexible Stroke (LMC)

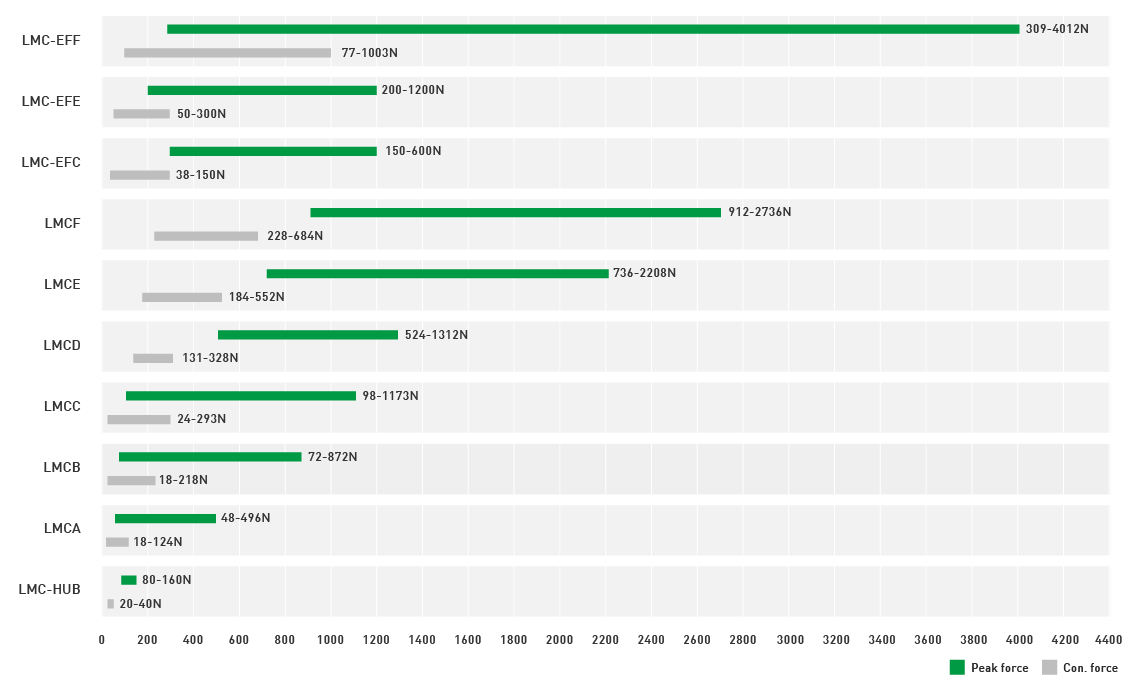

Ironless Motors

LMCA

LMCB

LMCC

LMCD

LMCE

LMCF

LMC-EFC

LMC-EFE

LMC-EFF

LMC-HUB

LMCA

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Width of stator [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMCA1 12 2.2 48 8.8 34 S0:128mm, S1:192mm, S3:320mm
LMCA2 24 2.3 96 9.2 66 S0:128mm, S1:192mm, S3:320mm
LMCA3 34 2.1 136 8.4 98 S0:128mm, S1:192mm, S3:320mm
LMCA4 45 2.1 180 8.4 130 S0:128mm, S1:192mm, S3:320mm
LMCA5 52 1.8 208 7.2 162 S0:128mm, S1:192mm, S3:320mm
LMCA6 62 1.8 248 7.2 194 S0:128mm, S1:192mm, S3:320mm
LMCA7 72 1.8 289 7.2 226 S0:128mm, S1:192mm, S3:320mm
LMCA8 83 1.8 331 7.2 258 S0:128mm, S1:192mm, S3:320mm
LMCAA 96 1.8 386 7.2 322 S0:128mm, S1:192mm, S3:320mm
LMCAC 124 1.8 496 7.2 386 S0:128mm, S1:192mm, S3:320mm

LMCB

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Width of stator [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMCB1 18 2 72 8 34 S0:128mm, S1:192mm, S3:320mm
LMCB2 36 2 144 8 66 S0:128mm, S1:192mm, S3:320mm
LMCB3 54 2 216 8 98 S0:128mm, S1:192mm, S3:320mm
LMCB4 73 2 292 8 130 S0:128mm, S1:192mm, S3:320mm
LMCB5 91 2 364 8 162 S0:128mm, S1:192mm, S3:320mm
LMCB6 109 2 436 8 194 S0:128mm, S1:192mm, S3:320mm
LMCB7 128 2 512 8 226 S0:128mm, S1:192mm, S3:320mm
LMCB8 145 2 580 8 258 S0:128mm, S1:192mm, S3:320mm
LMCBA 181 2 724 8 322 S0:128mm, S1:192mm, S3:320mm
LMCBC 216 1.8 864 7.2 386 S0:128mm, S1:192mm, S3:320mm

LMCC

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Width of stator [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMCC1 24 2 98 8 34 S0:128mm, S1:192mm, S3:320mm
LMCC2 49 2 195 8 66 S0:128mm, S1:192mm, S3:320mm
LMCC3 73 2 293 8 98 S0:128mm, S1:192mm, S3:320mm
LMCC4 98 2 391 8 130 S0:128mm, S1:192mm, S3:320mm
LMCC5 122 2 489 8 162 S0:128mm, S1:192mm, S3:320mm
LMCC6 147 2 586 8 194 S0:128mm, S1:192mm, S3:320mm
LMCC7 171 2 684 8 226 S0:128mm, S1:192mm, S3:320mm
LMCC8 195 2 780 8 258 S0:128mm, S1:192mm, S3:320mm
LMCCA 244 2 977 8 322 S0:128mm, S1:192mm, S3:320mm
LMCCC 293 2 1173 8 386 S0:128mm, S1:192mm, S3:320mm

LMCD

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Width of stator [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMCD4 131 3.25 524 13 260 S1:120mm, SB:180mm, S2:300mm
LMCD6 197 3.25 788 13 380 S1:120mm, SB:180mm, S2:300mm
LMCD8 262 3.25 1048 13 500 S1:120mm, SB:180mm, S2:300mm
LMCDA 328 3.25 1312 13 620 S1:120mm, SB:180mm, S2:300mm

LMCE

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Width of stator [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMCE4 184 3.25 736 13 260 S1:120mm, SB:180mm, S2:300mm
LMCE6 276 3.25 1104 13 380 S1:120mm, SB:180mm, S2:300mm
LMCE8 368 3.25 1472 13 500 S1:120mm, SB:180mm, S2:300mm
LMCEA 460 3.25 1840 13 620 S1:120mm, SB:180mm, S2:300mm
LMCEC 552 3.25 2208 13 740 S1:120mm, SB:180mm, S2:300mm

LMCF

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Width of stator [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMCF4 228 3.8 912 15.2 260 S1:120mm, SB:180mm, S2:300mm
LMCF6 342 5.7 1368 22.8 380 S1:120mm, SB:180mm, S2:300mm
LMCF8 456 7.6 1824 30.4 500 S1:120mm, SB:180mm, S2:300mm
LMCFA 570 9.5 2280 38 620 S1:120mm, SB:180mm, S2:300mm
LMCFC 684 11.4 2736 45.6 740 S1:120mm, SB:180mm, S2:300mm

LMC-EFC

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Width of stator [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMC-EFC1 37 3.4 150 13.6 61 S1:120mm, SB:180mm, S2:300mm
LMC-EFC2 75 3.4 300 13.6 121 S1:120mm, SB:180mm, S2:300mm
LMC-EFC3 113 3.4 450 13.6 181 S1:120mm, SB:180mm, S2:300mm
LMC-EFC4 150 3.4 600 13.6 241 S1:120mm, SB:180mm, S2:300mm

LMC-EFE

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Width of stator [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMC-EFE1 50 2.7 200 10.8 61 S1:120mm, SB:180mm, S2:300mm
LMC-EFE2 100 2.7 400 10.8 121 S1:120mm, SB:180mm, S2:300mm
LMC-EFE3 150 2.7 600 10.8 181 S1:120mm, SB:180mm, S2:300mm
LMC-EFE4 200 2.7 800 10.8 241 S1:120mm, SB:180mm, S2:300mm
LMC-EFE5 250 2.7 1000 10.8 301 S1:120mm, SB:180mm, S2:300mm
LMC-EFE6 300 5.4 1200 21.7 361 S1:120mm, SB:180mm, S2:300mm

LMC-EFF

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Width of stator [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMC-EFF1 77 5.7 309 22.6 61 S1:120mm, SB:180mm, S2:300mm
LMC-EFF2 154 5.7 617 22.6 121 S1:120mm, SB:180mm, S2:300mm
LMC-EFF3 231 5.7 926 22.6 181 S1:120mm, SB:180mm, S2:300mm
LMC-EFF4 309 5.7 1234 22.6 241 S1:120mm, SB:180mm, S2:300mm
LMC-EFF5 386 5.7 1543 22.6 301 S1:120mm, SB:180mm, S2:300mm
LMC-EFF6 463 5.7 1852 22.6 361 S1:120mm, SB:180mm, S2:300mm
LMC-EFF7 540 5.7 2160 22.6 421 S1:120mm, SB:180mm, S2:300mm
LMC-EFF8 617 5.7 2469 22.6 481 S1:120mm, SB:180mm, S2:300mm
LMC-EFF9 694 5.7 2777 22.6 514 S1:120mm, SB:180mm, S2:300mm
LMC-EFFA 771 5.7 3086 22.6 601 S1:120mm, SB:180mm, S2:300mm
LMC-EFFB 849 5.7 3394 22.6 661 S1:120mm, SB:180mm, S2:300mm
LMC-EFFC 926 5.7 3703 22.6 721 S1:120mm, SB:180mm, S2:300mm
LMC-EFFD 1003 5.7 4012 22.6 781 S1:120mm, SB:180mm, S2:300mm

LMC-HUB

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Width of stator [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMC-HUB1 20 1.5 80 6.2 49 S1:72mm, S2:120mm
LMC-HUB2 40 3.1 160 12.3 97 S1:72mm, S2:120mm
