Ironcore Motors

Calculation program
HIWIN synchronous linear motors are especially distinguished by very high force density and minimum cogging force. They are characterized by their : wear-free operation, zero backlash and low speed ripple. The ironcore motors can be widely applied in Automation Technology, Machine Tool, Semiconductor Equipment, Glass Cutting Machine, Laser Processing Machine, PCB drilling, SMT, AOI, Active Mass Damper, etc.

Maximum velocity 30 m/s
Maximum acceleration 10G
The speed ripple at 0.1 m/s : 2~3%
Direct drive

Compared with single-axis robot

15 x

Maximum Velocity Increase of
15x

50 %

With multiple forcers
Work Efficiency Increase of 50%

∞ UNLIMIT

Assembly multiple stators
Flexible Stroke

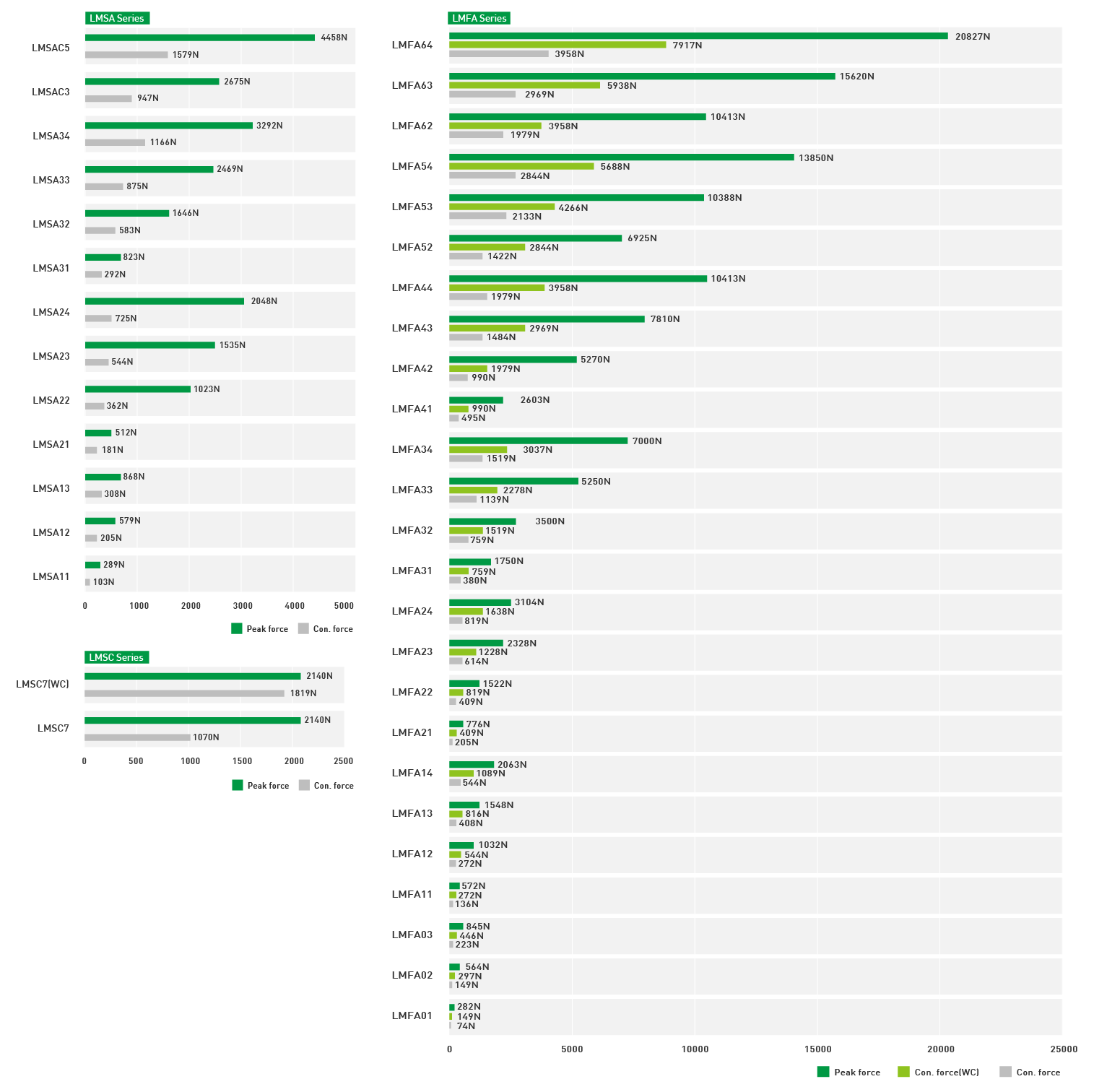

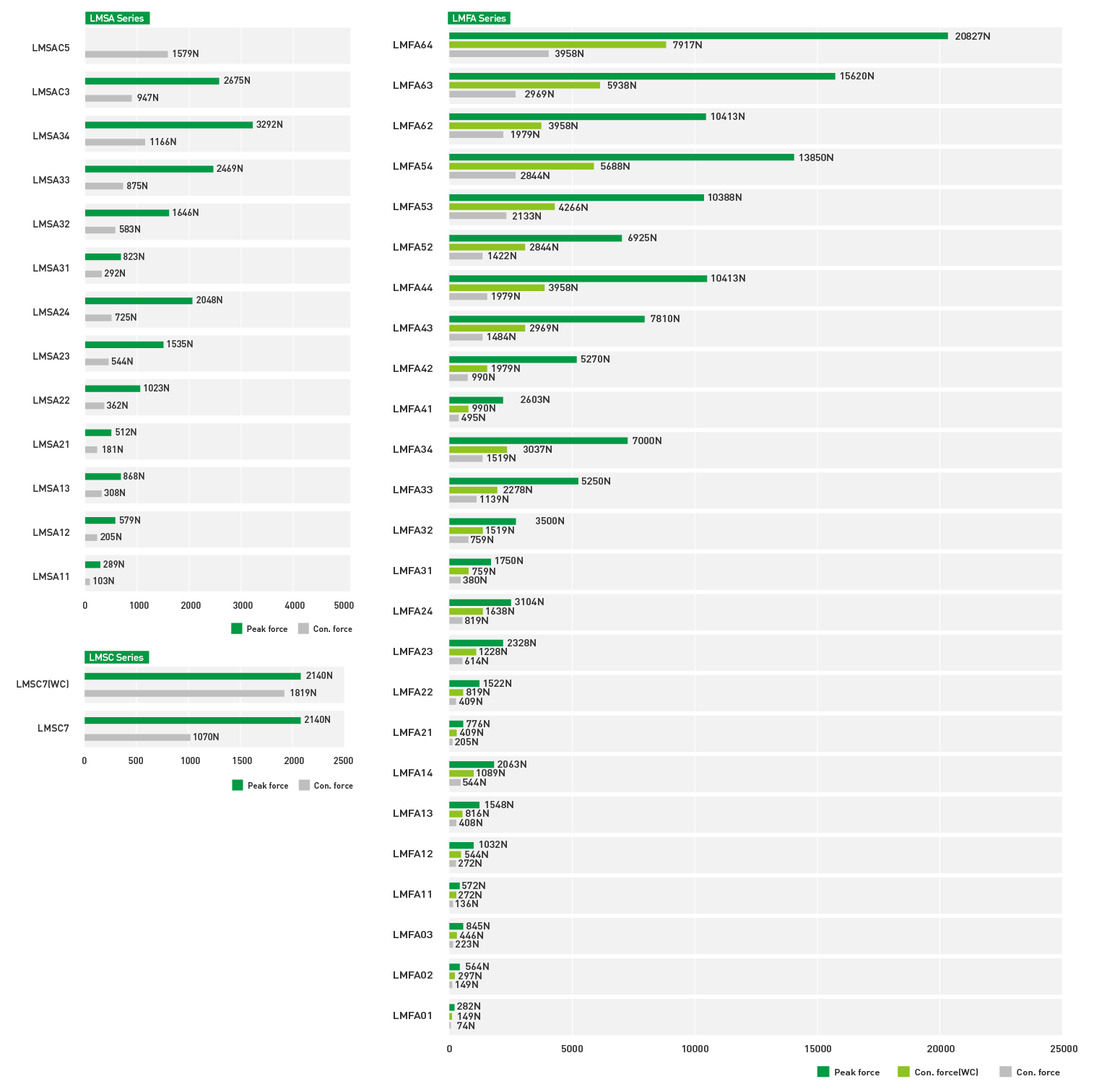

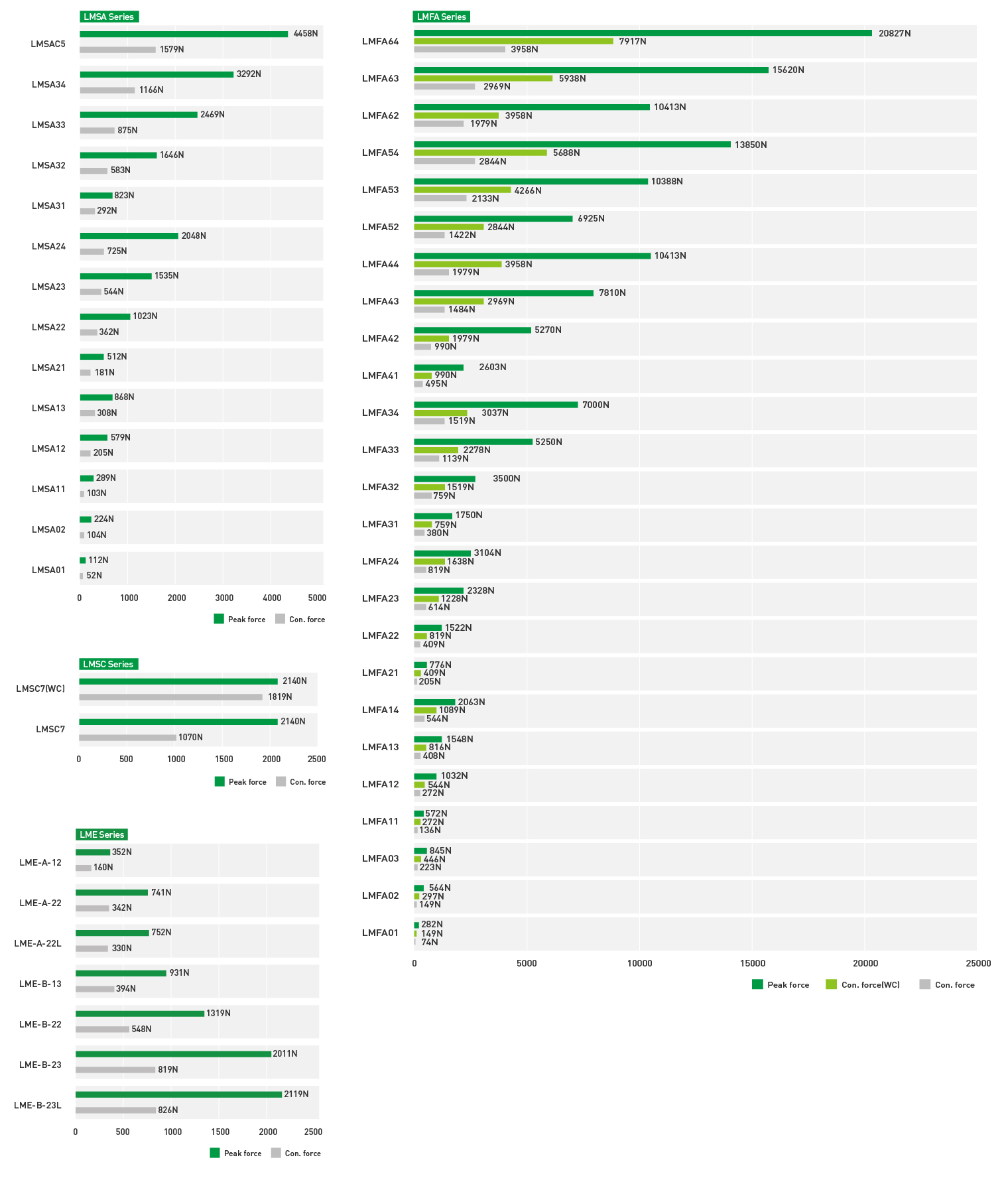

Ironcore Motors

LMSA

LMSA-Z

LMSC

LMFA

LMFP

LMFC

LMSS

LMSA

High force density
High dynamic response
Lower installation height
Continuous force from 52N to 1579N
Peak force from 112N to 4458N
Assembly total height 34mm, 36mm

Type	Continuous force [N]	Continuous current [Arms]	Peak force (1s) [N]	Peak current (1s) [Arms]	Width of stator [mm]	Length of stator/Dimension N [mm]	Data Sheet	Interface Drawing	3D Model
LMSA01	52	2.1	112	6.3	37	120mm/N=2 180mm/N=3 300mm/N=5
LMSA02	104	4.2	224	12.6	37	120mm/N=2 180mm/N=3 300mm/N=5
LMSA11	103	2.1	289	6.3	52	120mm/N=2 180mm/N=3 300mm/N=5
LMSA11L	103	4.7	289	14.1	52	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA12	205	4.2	579	12.7	52	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA12L	205	9.4	579	28.3	52	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA13	308	6.3	868	19	52	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA13L	308	14.1	868	42.4	52	120mm/N=2 180mm/N=3 300mm/N=5
LMSA21	181	2.0	512	5.9	86	120mm/N=2 180mm/N=3 300mm/N=5
LMSA21(L)	181	4.4	512	13.1	86	120mm/N=2 180mm/N=3 300mm/N=5
LMSA22	362	3.9	1023	11.8	86	120mm/N=2 180mm/N=3 300mm/N=5
LMSA22(L)	362	8.8	1023	26.3	86	120mm/N=2 180mm/N=3 300mm/N=5
LMSA23	544	5.9	1535	17.6	86	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA23L	544	13.1	1535	39.4	86	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA24	725	7.8	2048	23.5	86	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA24L	725	17.5	2048	52.5	86	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA31	292	2	823	6	116	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA31L	292	4.5	823	13.4	116	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA32	583	4	1646	12	116	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA32L	583	8.9	1646	26.8	116	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA33	875	6	2469	18	116	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA33L	875	13.4	2469	40.2	116	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA34	1166	8	3292	24	116	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSA34L	1166	17.9	3292	53.6	116	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSAC3	947	6	2675	18	126	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSAC3L	947	13.4	2675	40.2	126	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSAC5	1579	10	4458	30	126	120mm/N=2, 180mm/N=3, 300mm/N=5
LMSAC5L	1579	22.3	4458	67	126	120mm/N=2, 180mm/N=3, 300mm/N=5

LMSA-Z

High dynamic response
Lower installation height
Continuous force range from 52N to 1166N
Peak force range from 112N to 3292N
Installation height 34mm, 36mm

Type	Continuous force [N]	Continuous current [Arms]	Peak force (1s) [N]	Peak current (1s) [Arms]	Width of stator [mm]	Length of stator/Dimension N [mm]	Data Sheet	Interface Drawing	3D Model
LMSA01-Z	52	2.1	112	6.3	37	120mm/N=2 180mm/N=3 300mm/N=5
LMSA02-Z	104	4.2	224	12.6	37	120mm/N=2 180mm/N=3 300mm/N=5
LMSA11-Z	103	2.1	289	6.3	52	120mm/N=2 180mm/N=3 300mm/N=5
LMSA12-Z	205	4.2	579	12.7	52	120mm/N=2 180mm/N=3 300mm/N=5
LMSA13-Z	308	6.3	868	19	52	120mm/N=2 180mm/N=3 300mm/N=5
LMSA21-Z	181	2	512	5.9	86	120mm/N=2 180mm/N=3 300mm/N=5
LMSA22-Z	362	3.9	1023	11.8	86	120mm/N=2 180mm/N=3 300mm/N=5
LMSA23-Z	544	5.9	1535	17.6	86	120mm/N=2 180mm/N=3 300mm/N=5
LMSA24-Z	725	7.8	2048	23.5	86	120mm/N=2 180mm/N=3 300mm/N=5
LMSA31-Z	292	2	823	6	116	120mm/N=2 180mm/N=3 300mm/N=5
LMSA32-Z	583	4	1646	12	116	120mm/N=2 180mm/N=3 300mm/N=5
LMSA33-Z	875	6	2469	18	116	120mm/N=2 180mm/N=3 300mm/N=5
LMSA34-Z	1166	8	3292	24	116	120mm/N=2 180mm/N=3 300mm/N=5

LMSC

Attraction force compensation
No attraction force transfer to the guideway
Optional water cooling
Continuous force from 1070N to 1819N
Peak force 2140N
Assembly total height 131.5mm

Type	Continuous force [N]	Continuous current [Arms]	Peak force (1s) [N]	Peak current (1s) [Arms]	Width of stator [mm]	Length of stator/Dimension N [mm]	Data Sheet	Interface Drawing	3D Model
LMSC7	1070	3.9	2140	11.8	100	128mm/N=1, 192mm/N=2, 320mm/N=4
LMSC7(WC)	1819	6.7	2140	11.8	100	128mm/N=1, 192mm/N=2, 320mm/N=4
LMSC7L	1070	7.9	2140	23.7	100	128mm/N=1, 192mm/N=2, 320mm/N=4
LMSC7L(WC)	1819	13.4	2140	23.7	100	128mm/N=1, 192mm/N=2, 320mm/N=4

LMFA

Internal water-cooling system
Distinguished force density
UL certification and CE certification
Continuous force with water cooling from 149N to 7917N
Peak force from 282N to 20827N
Assembly total height 48.5mm, 50.5mm, 64.1mm, 66.1mm

Type	Continuous force [N]	Continuous current [Arms]	Peak force (1s) [N]	Peak current (1s) [Arms]	Width of stator [mm]	Length of stator/Dimension N [mm]	Data Sheet	Interface Drawing	3D Model
LMFA01	74	1.4	149	2.7	58	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA01L	74	1.8	149	3.6	58	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA02	149	2.7	297	5.4	58	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA02L	149	3.6	297	7.3	58	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA03	223	4.1	446	8.1	58	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA03L	223	5.5	446	10.9	58	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA11	136	1.4	272	2.7	88	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA11L	136	1.8	272	3.6	88	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA12	272	2.7	544	5.4	88	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA12L	272	3.6	544	7.3	88	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA13	408	4	816	8.1	88	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA13L	408	5.5	816	10.9	88	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA14	544	5.4	1089	10.8	88	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA14L	544	7.3	1089	14.6	88	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA21	205	1.4	409	2.7	118	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA21L	205	1.8	409	3.6	118	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA22	409	2.7	819	5.4	118	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA22L	409	3.6	819	7.3	118	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA23	614	4.1	1228	8.1	118	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA23L	614	5.5	1228	10.9	118	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA24	819	5.4	1638	10.8	118	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA24L	819	7.3	1638	14.6	118	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFA31	380	3.1	759	6.2	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA31L	380	4.6	759	9.1	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA32	759	6.2	1519	12.4	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA32L	759	9.1	1519	18.3	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA33	1139	9.3	2278	18.6	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA33L	1139	13.7	2278	27.4	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA34	1519	12.4	3037	24.7	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA34L	1519	18.3	3037	36.5	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA41	495	2.9	990	5.8	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA41L	495	4.3	990	8.5	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA42	990	5.8	1979	11.5	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA42L	990	8.5	1979	17	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA43	1484	8.7	2969	17.3	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA43L	1484	12.8	2969	25.6	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA44	1979	11.5	3958	23.1	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA44L	1979	17	3958	34.1	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA52	1422	6.2	2844	12.4	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA52L	1422	9.1	2844	18.3	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA53	2133	9.3	4266	18.6	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA53L	2133	13.7	4266	27.4	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA54	2844	12.4	5688	24.7	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA54L	2844	18.3	5688	36.5	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFA62	1979	5.8	3958	11.5	334	184mm/N=4
LMFA62L	1979	11.5	3958	23.1	334	184mm/N=4
LMFA63	2969	8.7	5938	17.3	334	184mm/N=4
LMFA63L	2969	17.3	5938	34.6	334	184mm/N=4
LMFA64	3958	11.5	7917	23.1	334	184mm/N=4
LMFA64L	3958	23.1	7917	46.2	334	184mm/N=4

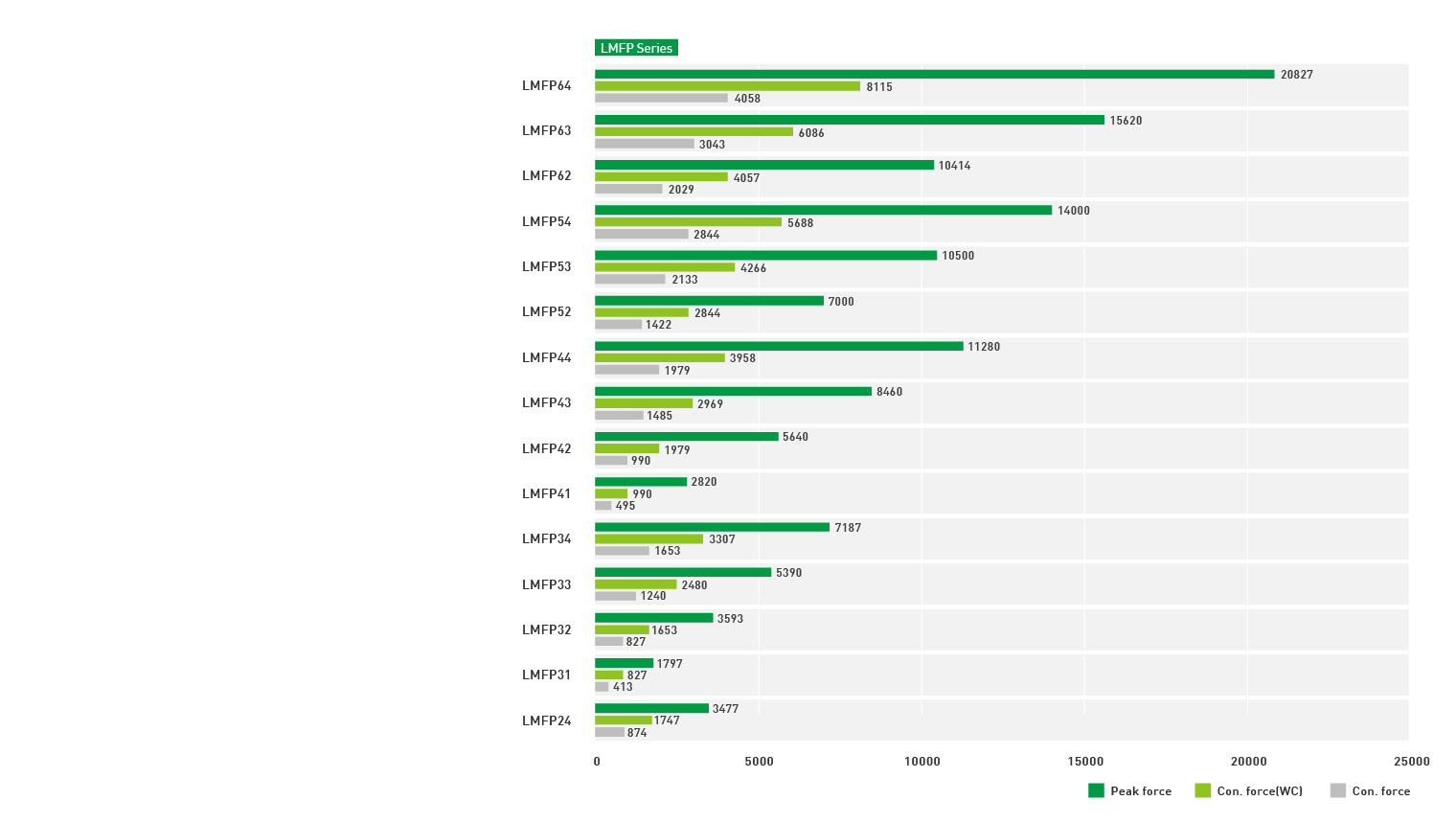

LMFP

IP65 protection class highly suitable for high contamination environments
Internal water-cooling system
Distinguished force density
UL certification and CE certification
Continuous force with water cooling from 827N~8115N
Peak force from 1797N~20827N
Assembly total height 50.5mm、64.1mm、66.1mm

Type	Continuous force [N]	Continuous current [Arms]	Peak force (1s) [N]	Peak current (1s) [Arms]	Width of stator [mm]	Length of stator/Dimension N [mm]	Data Sheet	Interface Drawing	3D Model
LMFP24-F40	874	5.7	3477	32.8	118	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFP24-H40	874	8.6	3477	49.5	118	120mm/N=2, 180mm/N=3, 300mm/N=5
LMFP31-Q10	413	4.1	1797	25.6	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP31-Q20	413	8.2	1797	51.2	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP32-Q20	827	8.2	3593	51.2	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP32-Q40	827	16.5	3593	102.4	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP33-Q30	1240	12.4	5390	76.8	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP33-Q60	1240	24.7	5390	153.6	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP34-Q40	1653	16.5	7187	102.4	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP34-Q80	1653	32.9	7187	204.8	134	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP41-Q10	495	3.4	2820	22.7	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP41-Q20	495	6.8	2820	45.4	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP42-Q20	990	6.8	5640	45.5	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP42-Q40	990	13.6	5640	90.9	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP43-Q30	1485	10.2	8640	68.2	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP43-Q60	1485	20.4	8640	136.4	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP44-Q40	1979	13.6	11280	90.9	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP44-Q80	1979	27.1	11280	181.8	180	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP52-Q20	1422	7.4	7000	46.3	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP52-Q40	1422	14.8	7000	92.7	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP53-Q30	2133	11.1	10500	69.5	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP53-Q60	2133	22.2	10500	139	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP54-Q40	2844	14.8	14000	92.7	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP54-Q80	2844	29.6	14000	185.3	240	184mm/N=2, 276mm/N=3, 460mm/N=5
LMFP62-Q20	2029	7	10414	41.9	334	184mm/N=4
LMFP62-Q40	2029	13.9	10414	83.8	334	184mm/N=4
LMFP63-Q30	3043	10.4	15620	62.9	334	184mm/N=4
LMFP63-Q60	3043	20.9	15620	125.7	334	184mm/N=4
LMFP64-Q40	4058	13.9	20827	83.8	334	184mm/N=4
LMFP64-Q80	4058	27.8	20827	167.6	334	184mm/N=4

LMFC

Precision Water Cooling Design - LMFC Series

Used with LMFA&LMFP series linear motors
The water temperature difference from the water cooler is within 4 °C
Surface temperature maintenance
Easy installation, stator precision water cooling and unlimited stitching

Type	Continuous force [N]	Continuous current [Arms]	Peak force (1s) [N]	Peak current (1s) [Arms]	Width of stator [mm]	Length of stator/Dimension N [mm]	Data Sheet	Interface Drawing	3D Model
LMFC	-	-	-	-	-	-

LMSS

Short length design to reduce stroke
Optimized cogging force
Insulation Class F

Type	Continuous force [N]	Continuous current [Arms]	Peak force (1s) [N]	Peak current (1s) [Arms]	Width of stator [mm]	Length of stator/Dimension N [mm]	Data Sheet	Interface Drawing	3D Model
LMSS11	95	2.7	263	10.8	50	80mm/N=2, 200mm/N=5
