PCI4P

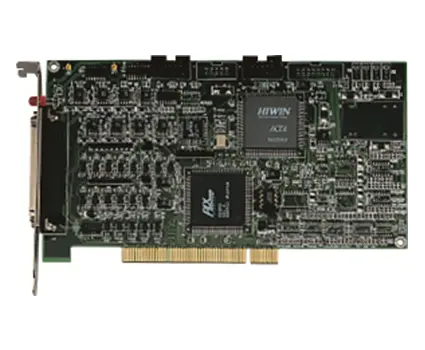

The HIWIN control card PCI4P controls up to four axes . It can be used for stepping motors and for pulse-controlled servo motors
  • PCI-BUS pulse type motion board
  • Pulse output rate up to 2.4 Mpps
  • Supports STP / DIR , CW / CCW , A / B pulse formats
  • 3-axis circular and linear interpolation
  • 4x32 bits encoder input counter
  • Equipped with home and limit sensors for each axis
  • Provides MCCL motion library for Microsoft Windows
  • Connect Copley PCI-4P_Manual(EN).pdf
    相關版本(前往下載中心)0
  • Connect LMDS PCI-4P_Manual(EN).pdf
    相關版本(前往下載中心)0
  • DTO Terminal block operational_Manual(EN).pdf
    相關版本(前往下載中心)0
  • PCI-4P hardware V.2.0_Manual(EN).pdf
    相關版本(前往下載中心)0
  • PCI-4P Initialize multiple cards in VB_Manual(EN).pdf
    相關版本(前往下載中心)0
  • PCI-4P Motion library example_Manual(EN).pdf
    相關版本(前往下載中心)0
  • PCI-4P Motion library reference_Manual(EN).pdf
    相關版本(前往下載中心)0
  • PCI-4P Motion library user's_Manual(EN).pdf
    相關版本(前往下載中心)0
  • PCI-4P Motion maker V1.01_Manual(EN).pdf
    相關版本(前往下載中心)0
