Universal AC Servo Motor

FR Series

 Calculation program
AC servo motor is a rotary motor with high-speed and low-torque, often used in automated, processing machines, turning machines, testing equipment, or winding machines. With servo drive controller, can achieve high response, high acceleration and deceleration and excellent running smoothness. With variety of diverse components and motor drive options can satisfied various of customer application needs.

  •  The inner rotary permanent magnet motor
  •  Brushless electronically commutated drive
  •  High power density
  •  High efficiency
  •  Optional key
  •  Optional brake
  •  Optional seal

FR Series

FR

FR

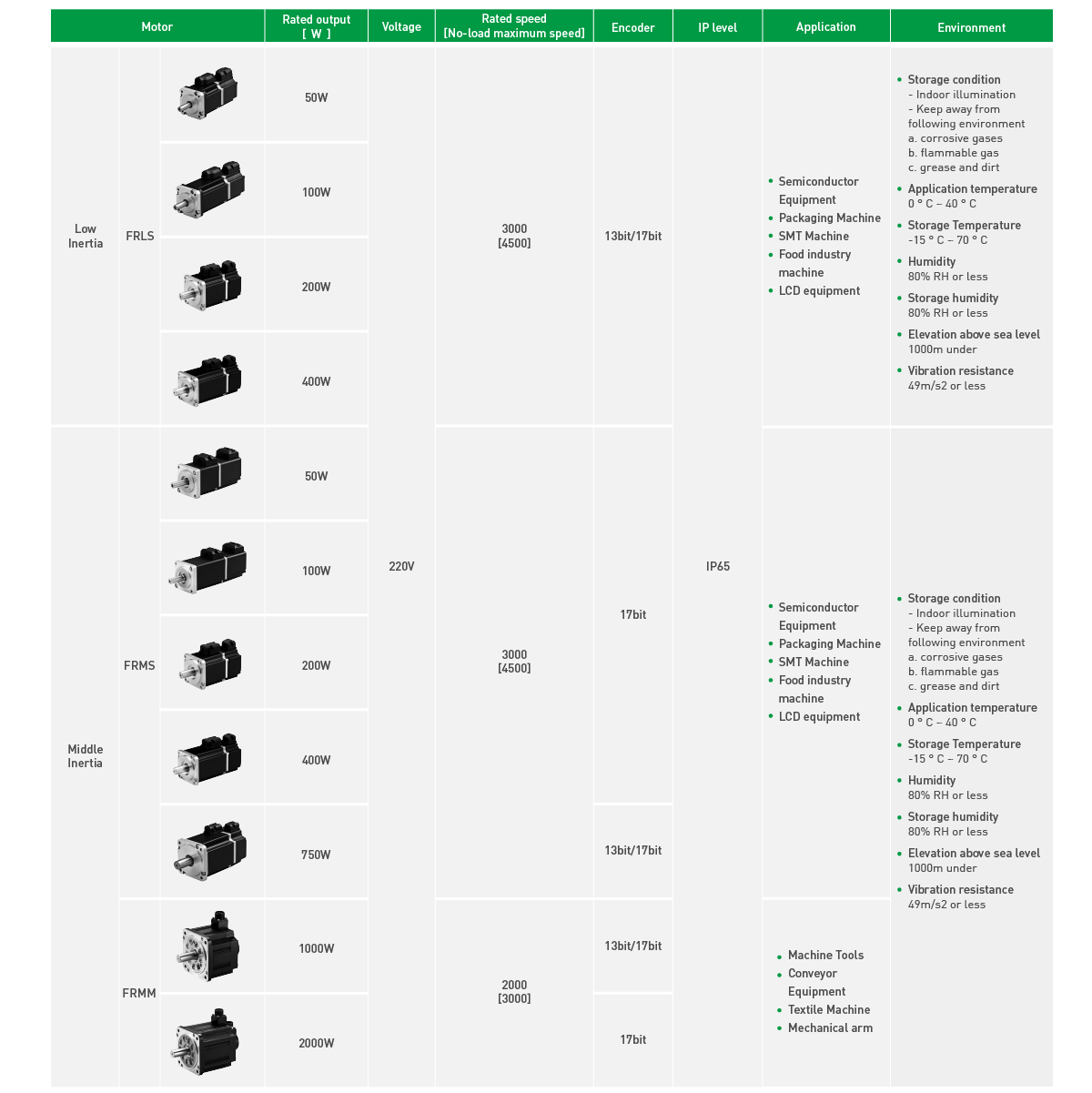

Type Drive Input Voltage (V) Rated Power (W)Rated Torque (N.m)Peak Max. Torque (N.m)Rated Speed (rpm)Peak Max. Speed (rpm) Data Sheet Interface Drawing 3D Model
FRLS05 220 50 0.16 0.48 3000 4500
FRLS10 220 100 0.32 0.96 3000 4500
FRLS20 220 200 0.64 1.92 3000 4500
FRLS40 220 400 1.27 3.81 3000 4500
FRMM1K 220 1000 4.77 14.3 2000 3000
FRMM2K 220 2000 9.55 28.65 2000 3000
FRMS05 220 50 0.16 0.48 3000 4500
FRMS10 220 100 0.32 0.96 3000 4500
FRMS2B 220 200 0.64 1.92 3000 4500
FRMS4B 220 400 1.27 3.81 3000 4500
FRMS75 220 750 2.4 7.2 3000 4500
