Integrated Servo Motor

abilymotor & abilyrobot

 Calculation program

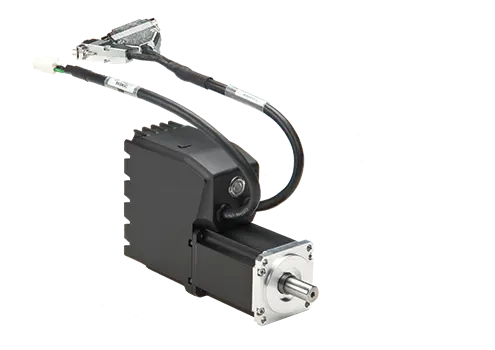

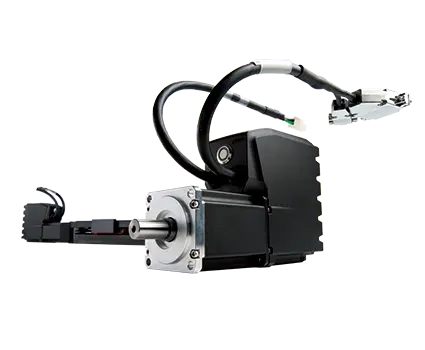

abilymotor is to integrate AC servo motor, encoder, drive and components interface into an integral servo system, has superior performance in order to satisfy the requirements from general to the high-end application.

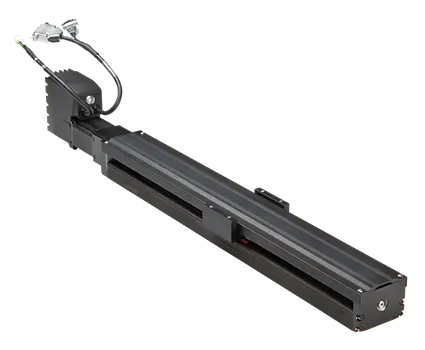

abilyrobot integrated the single axis robot, AC servo motor and drive, demonstrate high performance as compared with the conventional industrial robot,and raise the application competitive strength of equipment manufactures up.

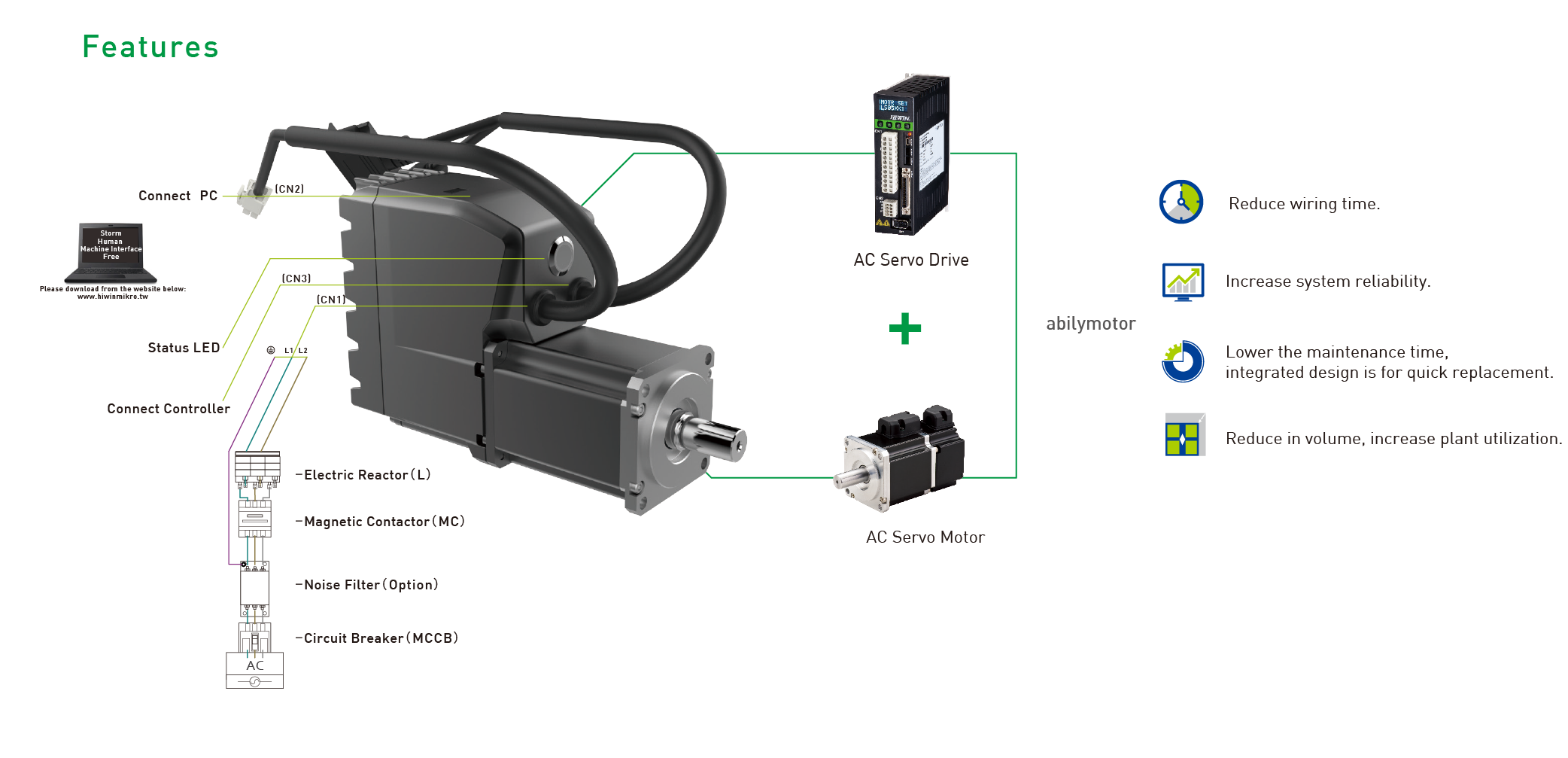

  •  Vibration Suppression Feature
  •  Electronic gear ratio and Encoder Emulator
  •  Quality Optimization
  •  High-speed Network Communication Interface

75 %

Installation time decrease of
abilyrobot

27 %

Reduce 27% in volume
increase plant utilization

40 %

Decrease 40% setting time
abilyrobot

abilymotor & abilyrobot

abilymotor

abilymotor

Type Voltage range (Vac) Frequency range (Hz)Rated current (Arms)Instantaneous current (Arms)Phase numberInstantaneous current/Peak time Data Sheet Interface Drawing 3D Model
200W 200-240 50-60 1.7 5.1 1 phase 1 sec
400W 200-240 50-60 2.5 7.5 1 phase 1 sec
