Tubular Motors

棒状电机

 选型程式
HIWIN 棒状电机，相似螺杆结构确有极简易安装方式、无磨耗零背隙且无顿力与低速度链波特性，加上动定子间无吸引力。可应用于安装平台不变形、轻负载且需求连续运动曲线。例如：3D打印设备、高速轻负载自动化设备、无尘环境的自动化设备、手机平板设备、光学检测设备、工具机线切割设备。
•     最大速度 5 m/s
•     最大加速度 5G
•     0.06 m/s补偿前的速度涟波0.55 ％
•     无噪音0dB
•     直驱(无旋转运动的组件转换直线运动)


与单轴工业机器人相比

2.5 倍

最高速度提升
2.5倍

50 %

搭配复数动子
加工时间减少50%以上

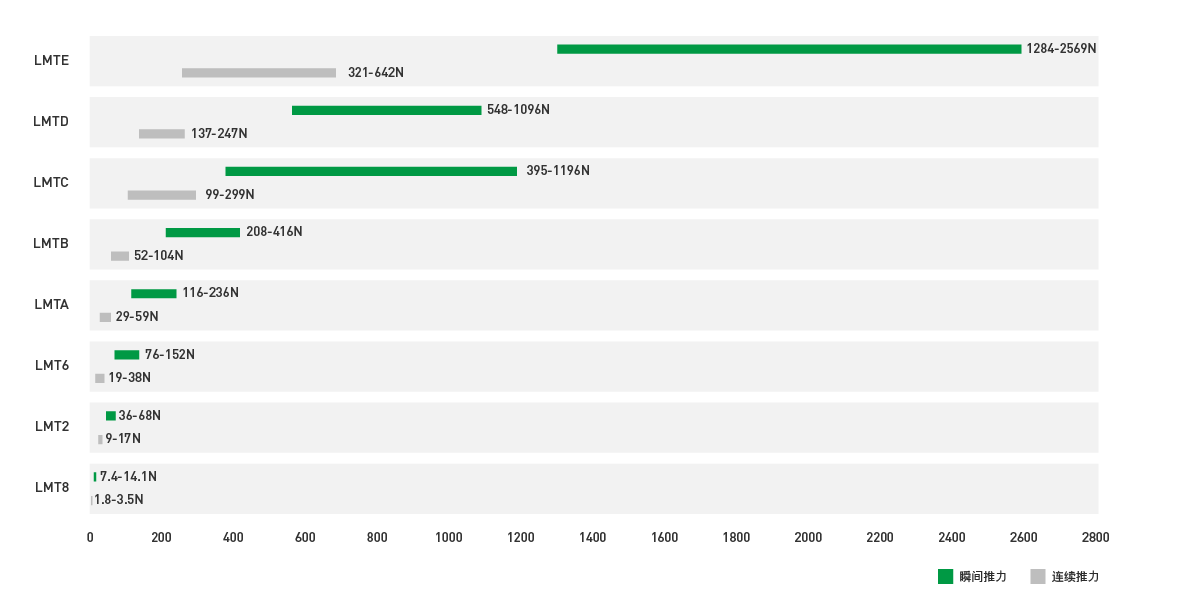

棒状电机

LMT2

LMT6

LMTA

LMTB

LMTC

LMT2

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Width of stator [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMT2D 9 1.5 36 6 64 25*25
LMT2Q 17 1.5 68 6 112 25*25
LMT2T 13 1.5 52 6 88 25*25

LMT6

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Width of stator [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMT6D 19 1.4 76 5.6 80 30*30
LMT6Q 38 1.4 152 5.6 140 30*30
LMT6T 28 1.4 112 5.6 110 30*30

LMTA

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Width of stator [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMTA2 29 1.6 116 6.4 94 40*40
LMTA3 45 1.6 180 6.4 130 40*40
LMTA4 59 1.6 236 6.4 166 40*40

LMTB

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Width of stator [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMTB2 52 1.3 208 5.2 120 50*50
LMTB3 78 1.3 312 5.2 165 50*50
LMTB4 104 1.3 416 5.2 210 50*50

LMTC

Type Continuous force [N]Continuous current [Arms]Peak force (1s) [N]Peak current (1s) [Arms]Width of stator [mm]Length of stator/Dimension N [mm] Data Sheet Interface Drawing 3D Model
LMTC2 99 2.6 395 10.4 160 60*60
LMTC3 151 2.6 603 10.4 220 60*60
LMTC4 200 2.6 801 10.4 280 60*60
LMTC5 250 2.6 998 10.4 340 60*60
LMTC6 299 2.6 1196 10.4 400 60*60
